Polyacrylamide in Sand Washing Wastewater Treatment

                  Polyacrylamide in Sand Washing Wastewater Treatment: Comprehensive Case Study & Application Guide

1 Case Analysis: Polyacrylamide Application in Lincol Sand Washing Plant

1.1 Client Background and Challenges

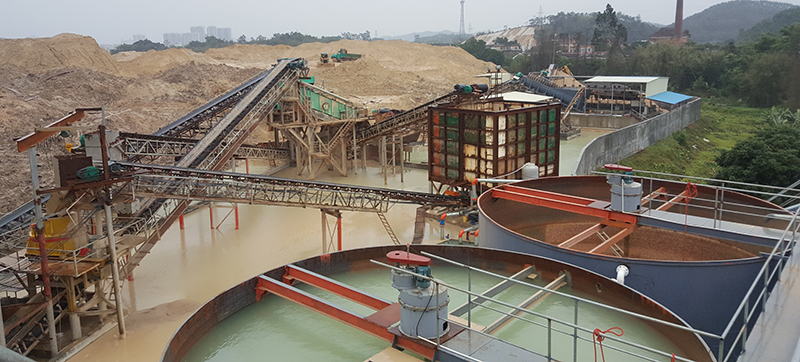

Lincol Silica Sand Operation in Southeast Asia processes approximately 2,500 cubic meters of raw sand daily, generating massive volumes of

high-turbidity wastewater containing fine clay particles. Prior to implementing our solution, the facility faced three critical challenges:

Water recycling limitations: Untreated wastewater required 8-12 hours of natural sedimentation, creating production bottlenecks and

insufficient water recovery for continuous operations .

Regulatory pressures: Local environmental regulations prohibited direct discharge of untreated slurry water due to its high suspended solids

(SS) content (15,000-20,000 mg/L)

Sludge management issues: Accumulated sludge occupied 30% of processing area, requiring frequent mechanical removal and disposal costs.

Technical assessments revealed their existing sedimentation ponds removed only 40-50% of suspended solids, with effluent SS levels exceeding 5,000 mg/L - far above reuse standards (<100 mg/L). The characteristic reddish-brown wastewater contained colloidal particles smaller than 75 microns that resisted gravity settling, consistent with regional geology containing iron oxides .

1.2 Solution Implementation

Working with Lincol's engineering team, we implemented a three-stage treatment system combining chemical and physical separation

processes:

Primary coagulation-flocculation system

Polyaluminum chloride (PAC) dosing: 50-100 g/m³ wastewater as primary coagulant to destabilize colloids .

Anionic polyacrylamide (A-PAM) augmentation: 15-20 g/m³ wastewater (optimal concentration determined through jar testing)

In-line mixing technology: Chemical injection directly into transfer pipelines prior to sedimentation basins, eliminating need for separate mixing equipment

Multi-stage sedimentation design

Three sequential settling basins with total retention time of 2.5 hours

Sludge collection system with automatic scrapers in primary basin

Recovered water clarity: 95%+ reduction in SS (effluent SS <80 mg/L) 3

Sludge concentration and dewatering

Secondary PAM conditioning:

Cationic polyacrylamide (C-PAM) at 0.8-1.2 kg/ton dry solids for sludge thickening

Mechanical dewatering: Membrane plate filter press achieving 65-70% cake solids

Water recovery: 85-90% process water return rate to washing circuits

Table: Polyacrylamide Specifications and Application Parameters

Product selection justification:

After testing six polyacrylamide variants, we selected APAM-Floc7620(anionic, high MW) for primary treatment due to its superior

performance in bridging fine silicate particles.

1.3 Quantified Outcomes

The integrated treatment system delivered measurable operational and environmental benefits within three months of implementation:

Water management transformation

Water recovery rate increased from 40% to 88%, reducing freshwater intake by 2,100 m³/day

Recycling water quality maintained at 50-80 NTU turbidity (meeting process requirements)

Clarification time reduced from 8+ hours to under 45 minutes

Waste reduction achievements

Sludge volume decreased by 70% through effective thickening/filter pressing

Produced filter cakes (65-70% solids) suitable for construction material recycling

Eliminated off-site sludge hauling costs ($8,500/month savings)

Chemical efficiency

Optimal PAM dosage identified at 16 mg/L through continuous monitoring

Actual consumption: 40-50 kg/day (aligning with laboratory predictions)

30% reduction in PAC usage through optimized polyacrylamide synergism

Table: Performance Comparison Before vs. After Implementation

The plant manager reported: "Implementing the tailored polyacrylamide program revolutionized our water management. We've eliminated

wastewater discharge concerns while cutting water acquisition costs by 65%. The precise flocculant selection and dosing control were

game-changers for operational efficiency."

2 Technical Guidelines: Optimizing Polyacrylamide in Sand Washing Applications

2.1 Flocculant Selection Methodology

Selecting the appropriate polyacrylamide flocculant requires comprehensive analysis of site-specific parameters. Our technical team follows a

rigorous four-stage evaluation:

Feed characterization

Particle analysis: Size distribution (laser diffraction), zeta potential, clay mineralogy

Water chemistry: pH, conductivity, hardness, ionic composition

Process review: Raw material geology, washing equipment, water reuse requirements

Laboratory validation

Jar testing protocol: Standardized evaluation using 250-1000mL samples

Dosage optimization: Gradient testing at 5, 10, 15, 20, 25 mg/L increments

Parameter monitoring: Settling velocity, supernatant clarity, floc density, compressibility

Pilot-scale verification

Continuous flow testing with 1-5 m³/h prototypes

Dynamic response evaluation under fluctuating feed conditions

Long-term stability assessment (8-24 hour runs)

Commercial deployment

Phased implementation with real-time monitoring

Algorithm-based dosing control tied to feed rate sensors

Performance auditing and optimization adjustments

Common selection errors include overemphasizing molecular weight while neglecting ionic character, or selecting cationic products for primary clarification simply because they work in sludge dewatering. Through our testing, medium-high anionics (15-25% charge density) prove optimal in 80% of silica sand applications, while cationics (40-60% ionicity) show best dewatering performance .

2.2 Application Best Practices

Proper handling and application are equally critical as product selection. Based on field experience across 30+ sand washing operations, we recommend these protocols:

Solution preparation

Use dedicated mixing tanks (stainless steel, plastic, or coated carbon steel)

Maintain 0.1-0.3% concentration (1-3g/L) for APAM applications

Apply reverse hydration: Add PAM gradually to agitated water (never pour water onto powder)

Optimize dissolution: 40-60 minutes mixing at 60-200 rpm (avoid mechanical degradation)

Dosing methodology

Install injection points at high-turbulence zones for rapid dispersion

Apply PAC coagulant 1-3 minutes before PAM addition where used

Utilize automatic dosing pumps with flow-proportional control

Implement staged addition (30% primary, 70% secondary) in large-volume systems

Operational safeguards

Monitor solution viscosity daily as indicator of polymer activity

Never store prepared solutions >48 hours (hydrolysis reduces effectiveness)

Prevent coagulant-flocculant premixing (causes ineffective reactions)

Shield mixing systems from excessive heat (>45°C) and freezing

"The dissolution process makes or breaks performance," notes our field engineer. "We've remedied multiple 'product failure' cases simply by correcting improper mixing - usually excessive shear from high-speed mixers or insufficient hydration time. Proper preparation delivers 30-50% effectiveness improvement."

2.3 System Integration and Troubleshooting

Integrating polyacrylamide programs requires holistic engineering beyond chemical selection. Key design considerations include:

Hydraulic optimization

Minimum 30-second rapid mix after PAM addition

Laminar flow conditions during floc growth (velocity gradient G <50 s⁻¹)

Settling basin loading rates maintained at 1.0-2.5 m³/m²/h

Troubleshooting guide

Small/fluffy flocs: Increase coagulant dosage; verify PAM concentration; check pH

Clear water with suspended flocs: Reduce mixing energy; optimize flocculant dose

Excessive carryover: Increase retention time; evaluate basin design

Rising sludge: Reduce PAM dosage; switch to higher-density product

Economic optimization comes from continuous monitoring rather than set-and-forget operation. A Malaysian granite operation achieved 22%

cost reduction by implementing real-time turbidity monitoring with automated feedback to dosing pumps. Their system adjusts PAM

concentration ±15% based on influent solids load, maintaining performance while reducing average consumption from 19.2 to 15.0 mg/L.
